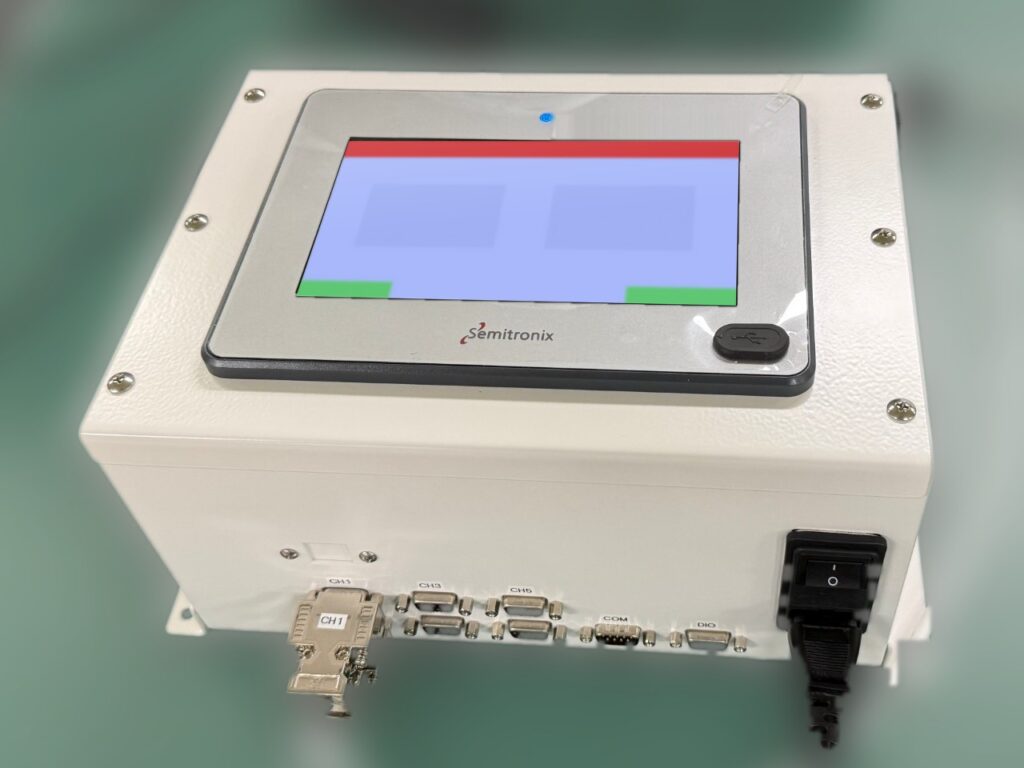

ModelSEC600H
TypeExhaust Pressure Controller
Display7" Color Touch Screen
- Exhaust pressure monitoring & auto control (E/P regulator)
- AUTO / MANUAL control mode
- 6CH sensor input, RS-232C, DIO interface
SpecificationsSEC600H
● Features
■ Exhaust Pressure Controller
: Real-time exhaust pressure monitoring (kPa)
: Automatic pressure control by E/P regulator (MPa)
: Set pressure input on touch screen
● Specifications
| Model | SEC600H |
| Display | 7″ Color Touch Screen (HMI) |
| Control Mode | AUTO / MANUAL |
| Measurement | Exhaust Pressure (kPa) |
| Control Output | E/P Regulator (MPa) |
| Sensor Channel | 6CH (CH1 ~ CH6, D-SUB 9pin) |
| Communication | RS-232C (COM, D-SUB 9pin) |
| Digital I/O | DIO (D-SUB 9pin) – Alarm / Interlock |
| Data Port | USB (Front Panel) |
| Power | 1P AC 220V, 50/60Hz |
| Enclosure | Steel Enclosure, Flange Mount |
| Application | TEL / KOKUSAI |
